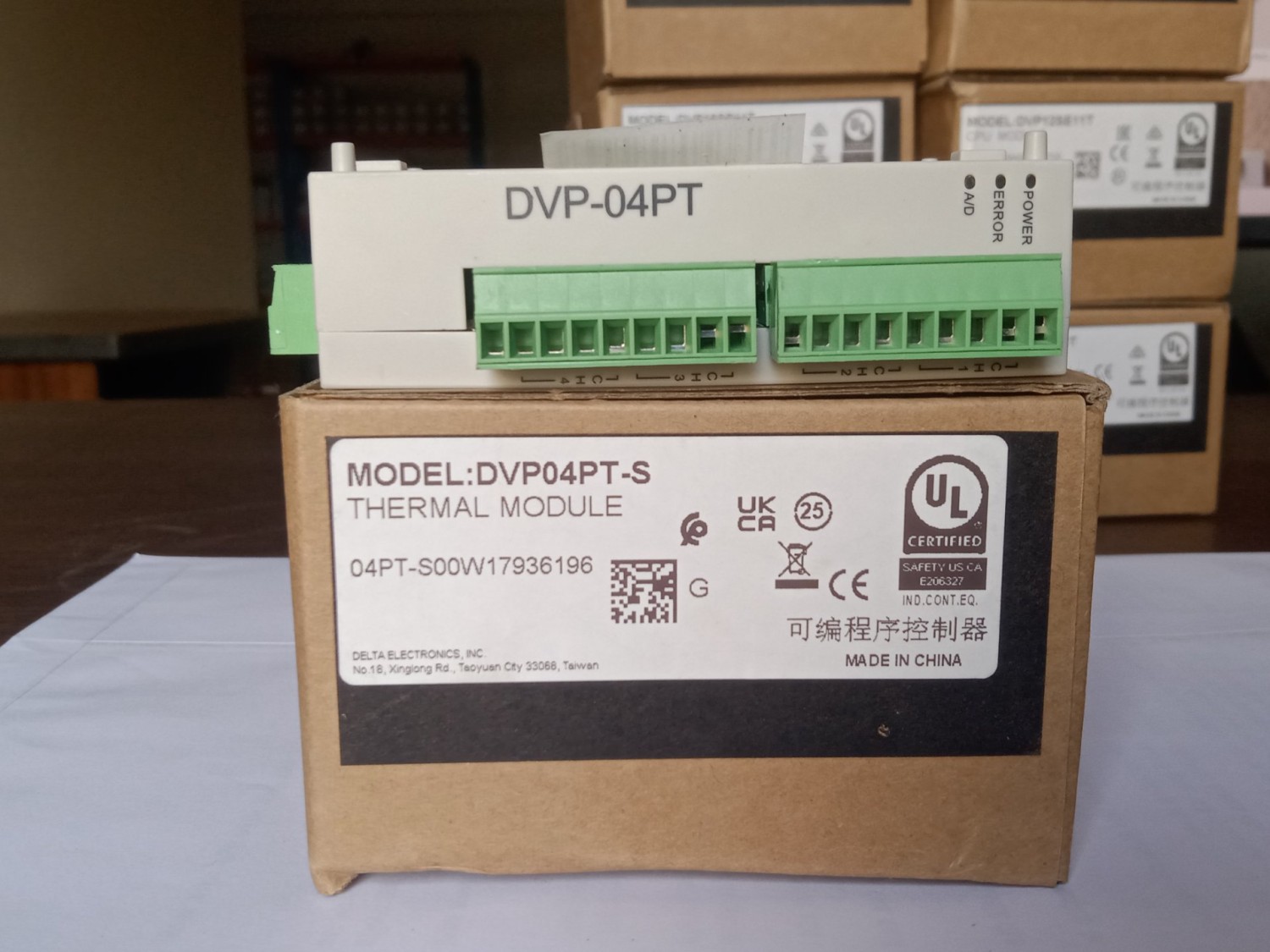

DVP04PT Temperature Measurement Expansion Module (4-Channel RTD Input)

The Delta DVP04PT Temperature Measurement Expansion Module is a high-precision RTD temperature input module designed for Delta DVP Series PLC systems. Featuring 4 temperature input channels, this module allows accurate temperature monitoring and measurement using RTD sensors such as Pt100, Pt1000, Ni100, and Ni1000.

The DVP04PT converts temperature signals into digital data for processing by the PLC, providing reliable and accurate temperature control for industrial automation applications. With high-resolution measurement capability, built-in diagnostic functions, and support for multiple RTD sensor types, the module is ideal for process control, HVAC systems, food processing, pharmaceutical production, water treatment plants, and industrial machinery. It supports up to 8 expansion modules per PLC system without consuming digital I/O points.

Technical Specifications:

• Brand: Delta Electronics
• Model: DVP04PT
• Product Type: Temperature Measurement Expansion Module
• Input Channels: 4 RTD Inputs
• Supported Sensors: Pt100, Pt1000, Ni100, Ni1000 RTD Sensors
• Sensor Wiring: 2-Wire / 3-Wire RTD Support
• Supply Voltage: 24 VDC
• Digital Data Format: 16-bit Two's Complement
• Resolution: 0.1°C / 0.18°F
• Conversion Time: 200 ms per Channel
• Accuracy: Up to ±0.6% Full Scale
• Temperature Units: Celsius (°C) and Fahrenheit (°F)
• Self-Diagnostic Function: Supported
• Average Function: Supported
• Communication: PLC Expansion Bus
• Expansion Support: Up to 8 Modules per PLC
• Digital I/O Consumption: None
• Mounting Type: DIN Rail Mounting
• Operating Temperature: 0°C to 55°C
• Protection Class: IP20
• Application: Temperature Monitoring, Process Control, HVAC Systems, Food Processing, Pharmaceutical Industry, Water Treatment, Factory Automation
