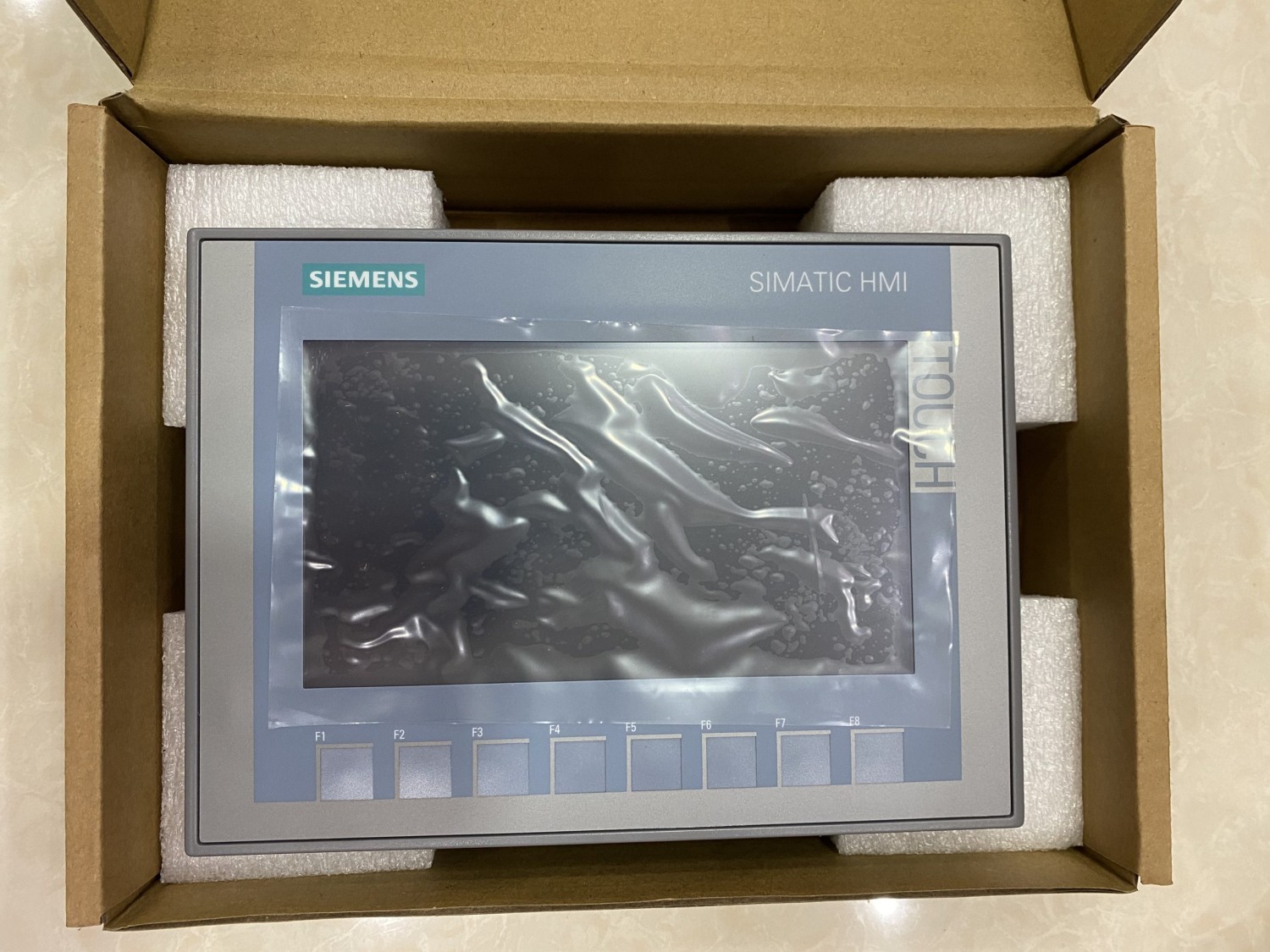

The Siemens SIMATIC HMI KTP1200 Basic Panel (6AV2123-2MB03-0AX0) is an industrial human-machine interface designed for machine operation, process visualization, and monitoring in PLC-based automation systems. This second-generation Basic Panel features a 12-inch widescreen TFT color display with touchscreen and physical key operation, providing operators with a practical interface for viewing machine status, process values, alarms, and control screens.
The KTP1200 Basic supports PROFINET communication for integration with compatible Siemens PLCs and industrial equipment. Its 1280 × 800 display resolution and 65,536-color capability help present process information clearly. Projects can be configured using WinCC Basic V13 or STEP 7 Basic V13 and compatible versions, subject to project and software requirements.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Siemens |
| Product Family | SIMATIC HMI Basic Panels, 2nd Generation |
| Model | KTP1200 Basic Color PN |
| Article Number | 6AV2123-2MB03-0AX0 |
| Display Size | 12-inch widescreen |
| Display Type | TFT with LED backlighting |
| Resolution | 1280 × 800 pixels |
| Display Colors | 65,536 |
| Operation | Touchscreen and physical keys |
| Communication Interface | PROFINET |
| Supply Voltage | 24 V DC |
| Permissible Voltage Range | 19.2–28.8 V DC |
| Rated Current Consumption | 510 mA |
| Typical Power Consumption | 12.2 W |
| USB Interface | 1 |
| Engineering Software | WinCC Basic V13 / STEP 7 Basic V13 or compatible versions |
| Product Lifecycle | Listed as active in the Siemens Industry Mall catalog consulted |
Key Features and Benefits
Large 12-inch display: Provides a spacious interface for machine screens, alarms, and process data.
Touch and key operation: Supports flexible operator interaction.
Clear visualization: TFT widescreen display with 65,536 colors and 1280 × 800 resolution.
PROFINET connectivity: Enables communication with compatible PLCs and automation devices.
Basic Panel platform: Suitable for standard machine-control and visualization requirements.
Siemens engineering support: Configurable with compatible WinCC Basic and STEP 7 Basic software.
Applications
Industrial machinery and equipment operation
PLC-based control systems
Factory production and assembly lines
Packaging and material-handling equipment
Process monitoring and alarm visualization
Industrial automation operator stations
Compatibility and Installation
Before purchasing, confirm compatibility with your PLC, PROFINET network, existing HMI project, and installed engineering software version. Check the panel dimensions, mounting cutout, and electrical requirements against the Siemens installation documentation. Installation and commissioning should be performed by qualified personnel.
Product Availability
The Siemens Industry Mall catalog consulted lists this model as an active product. Actual stock, delivery time, warranty, and availability in Bangladesh should be confirmed with the supplier before
